SmallRig HawkLock Quick Release Full Camera Cage Kit for Sony A7R VI 6702

SmallRig HawkLock Quick Release Full Camera Cage Kit for Sony A7R VI 6702

The Full Cage (6702) combines professional protection with rapid deployment technology. Its patented HawkLock Quick-Release System features built-in H21 NATO rails and a self-locking Arca-Swiss plate, allowing one-press attachment of side handles, top handles, monitor mounts, and gimbals without secondary tightening—critical time savings on set. Four-point locking with silicone padding secures your camera while precision cutouts maintain full access to every button, dial, and port. The integrated Arca-Swiss plate mounts seamlessly on Arca-type tripods and DJI RS 2/3/4/5 series gimbals for instant switching between handheld, gimbal, and static configurations. A professional expansion hub with multiple 1/4"-20 and ARRI 3/8"-16 locating holes, cold shoe, QD socket, and strap slots accommodates monitors, microphones, lights, grips, and shoulder straps. The complete kit includes a tool-free HDMI cable clamp and magnetic hex key for quick assembly, delivering a production-ready cage out of the box.

Features:

• Patented HawkLock Quick‑Release System: Built‑in H21 NATO rails and self‑locking Arca‑Swiss plate enable one‑press attachment of side handles, top handles, monitor mounts, and gimbals – no secondary tightening, saving critical setup time.

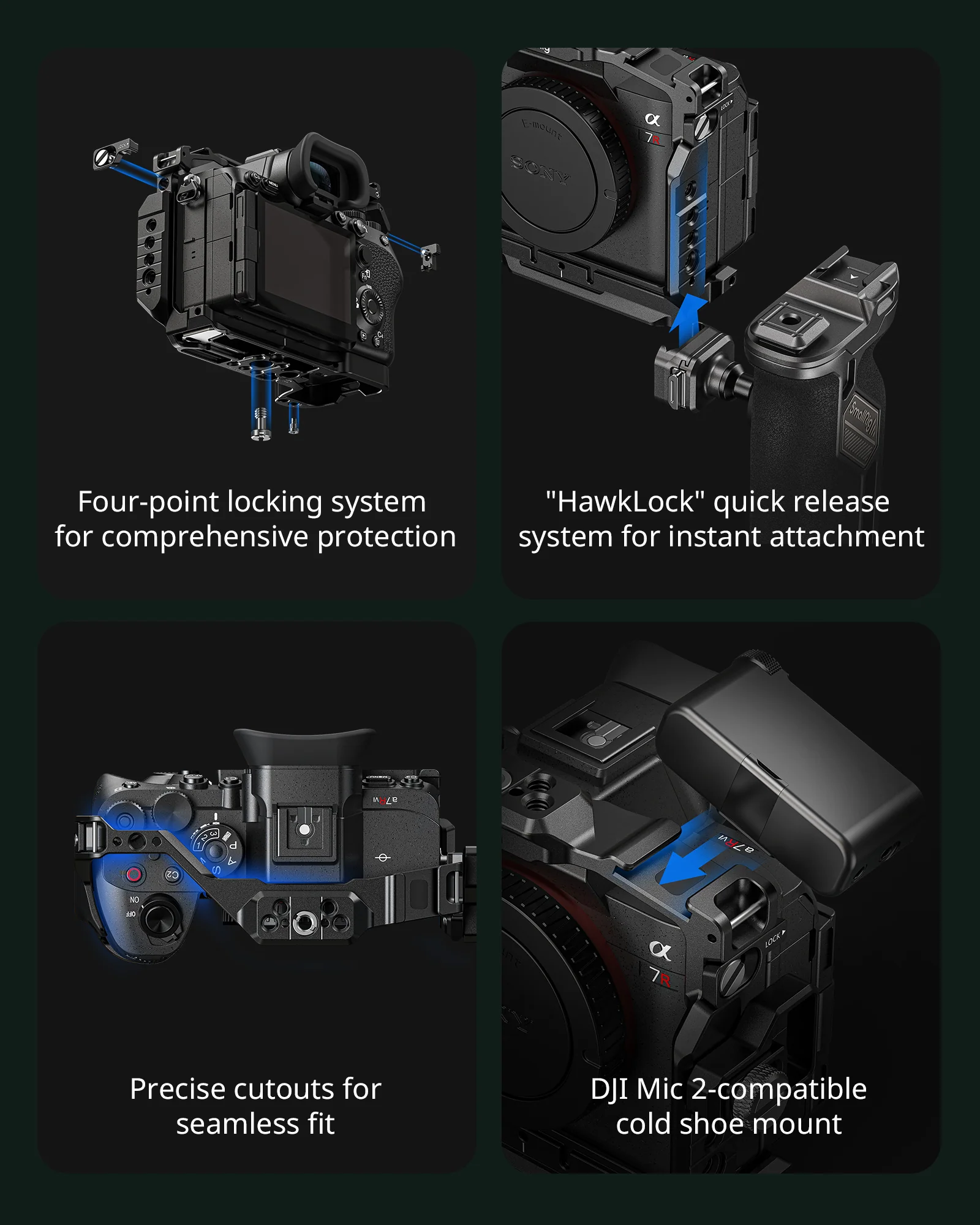

• Secure 4‑Point Locking & Full Camera Access: Four contact points (bottom screw, side screw, locating blocks) with silicone padding eliminate deflection while protecting against scratches. Precision cutouts keep every button, dial, and port fully accessible.

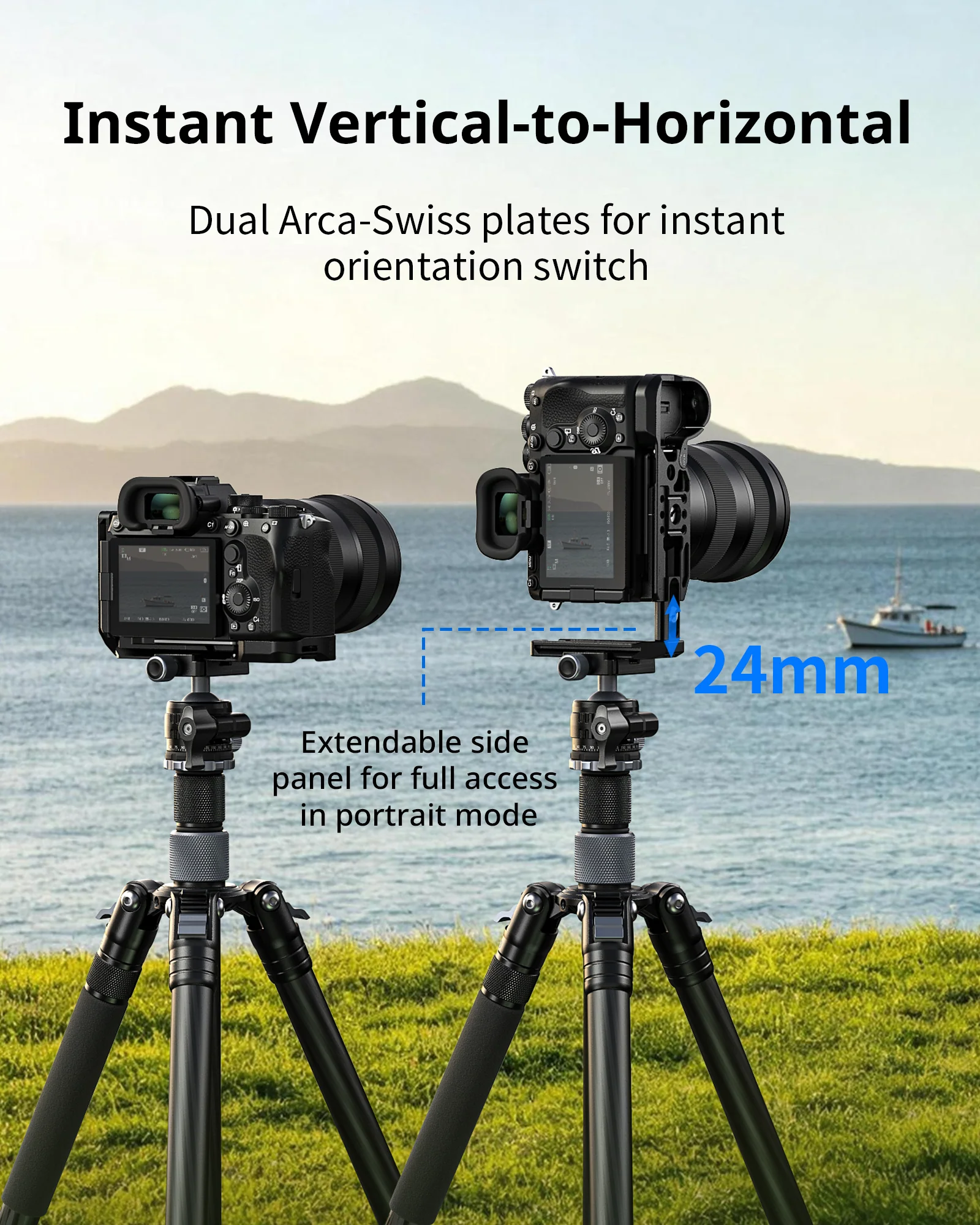

• Integrated Arca‑Swiss & Stabilizer Ready: Bottom Arca plate mounts directly on Arca‑type tripods and DJI RS 2/3/4/5 series gimbals for seamless switching between handheld, gimbal, and static setups.

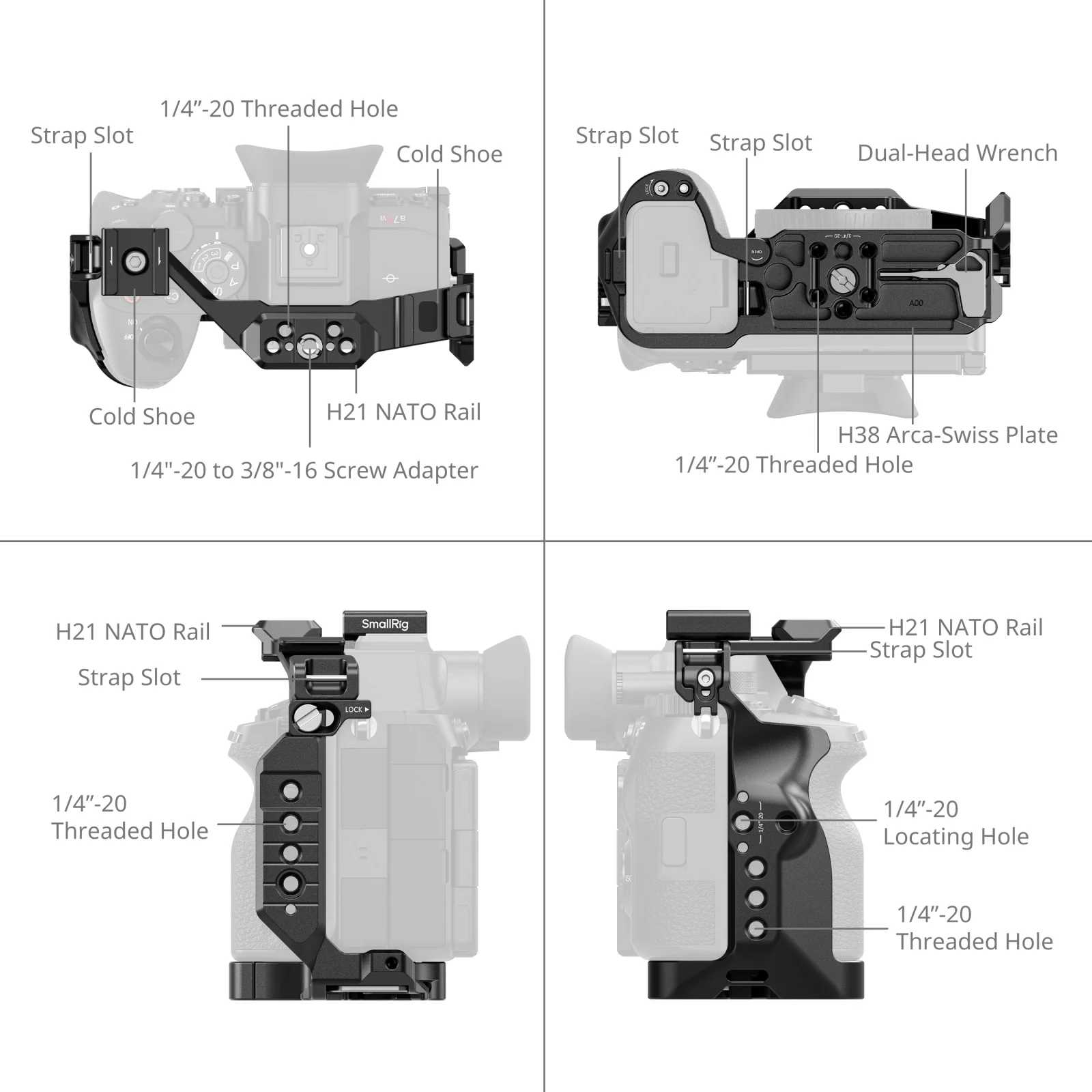

• Professional Expansion Hub: Multiple 1/4"-20 & ARRI 3/8"-16 locating holes, cold shoe, QD socket, and strap slots for attaching monitors, mics, lights, side grips, top handles, and shoulder straps – adapts to any production need.
• Complete Kit Includes HDMI Cable Clamp & Magnetic Tools: All configurations come with a tool‑free cable clamp to secure HDMI connections. The base features a magnetic hex key for quick assembly/disassembly – ready to shoot out of the box.


Configuration:

• Full Cage (6702): Core protection + HawkLock NATO rail + Arca plate.
• Basic Cage Kit (6703): Adds a top handle for low‑angle control and easy transport.
• Advanced Kit (6704): Full cage + top handle + side handle (silicone grip) for superior dual‑handheld stability.

Compatible With:

Cameras:

• Sony A7R VI

Dimensions:

5.8 × 2.5 × 4.5"

Weight:

0.43 lbs

Materials:

Aluminum Alloy, Stainless Steel, Silicone

Precautions:

After securing the bottom 1/4"-20 screw, remove the anti-rotation pin from its storage hole and fasten it to the corresponding position near the battery compartment.

Manufacturer SKU:

6702

In The Box:

SmallRig HawkLock Quick Release Full Camera Cage Kit for Sony A7R VI 6702
Cold Shoe Support
2x Wrench
1/4"-20 Screw
User Manual
