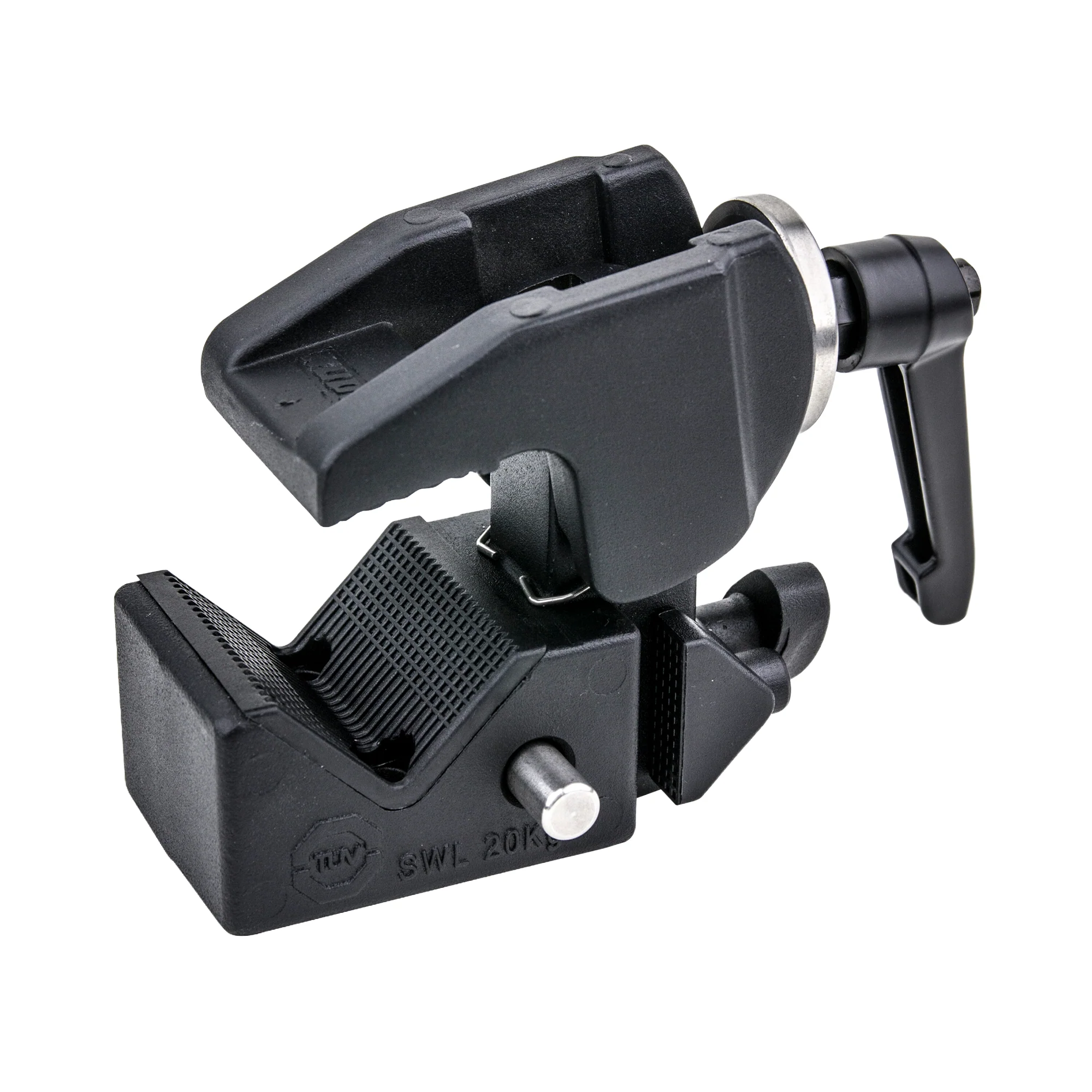

Kupo Convi Clamp with Adjustable Handle - Black

Kupo Convi Clamp with Adjustable Handle

The Convi Clamp is more than just an amazing clamp, it's the foundation of an entire grip system. The all-metal Convi Clamp is made from a lightweight alloy that will support loads of up to 44lbs (20kg). It features a hexagonal receiver that accepts dozens of Convi accessories from a simple stud to the versatile Max Arm to mount almost any light fixture camera or accessory. The receiver features a spring locking safety system to ensure that the Convi accessory won't separate from the clamp if the locking screw loosens unexpectedly. The Convi Clamp has a jaw that will extend from 0.2"-2.0" (5-51mm) in diameter. It also features a saddle to securely mount it on flat surfaces. This clamp has a ratcheted handle that allows you to reposition it should you not have clearance to rotate the handle in a complete circle to tighten or loosen it. It comes in a black finish.

Design:

• Jaw extension range 0.2" to 2.0" (5–51 mm) diameter
• Hexagonal receiver for Convi accessories
• Spring locking safety system
• Ratcheted adjustable handle
• Saddle base for flat surface mounting

Features:

• Has a ratcheted handle that allows the user to rotate it in a complete circle to tighten or loosen

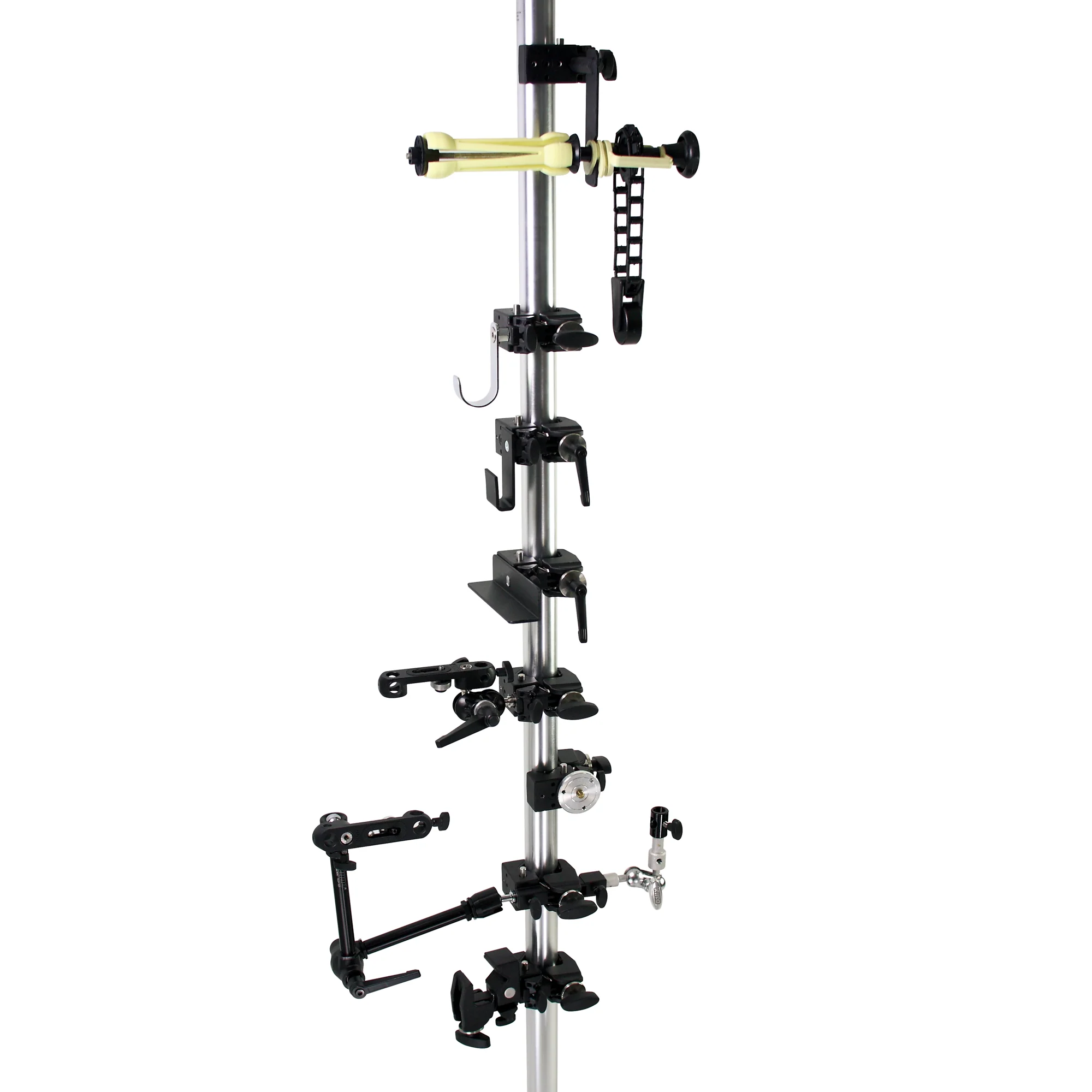

• Features a hexagonal receiver that works with dozens of Convi accessories
• Supports loads of up to 44lbs (20kKg)
• Operates in tight spaces with limited rotation clearance
• Made of a lightweight alloy with a black finish


Maximum Payload Capacity:

44 lbs

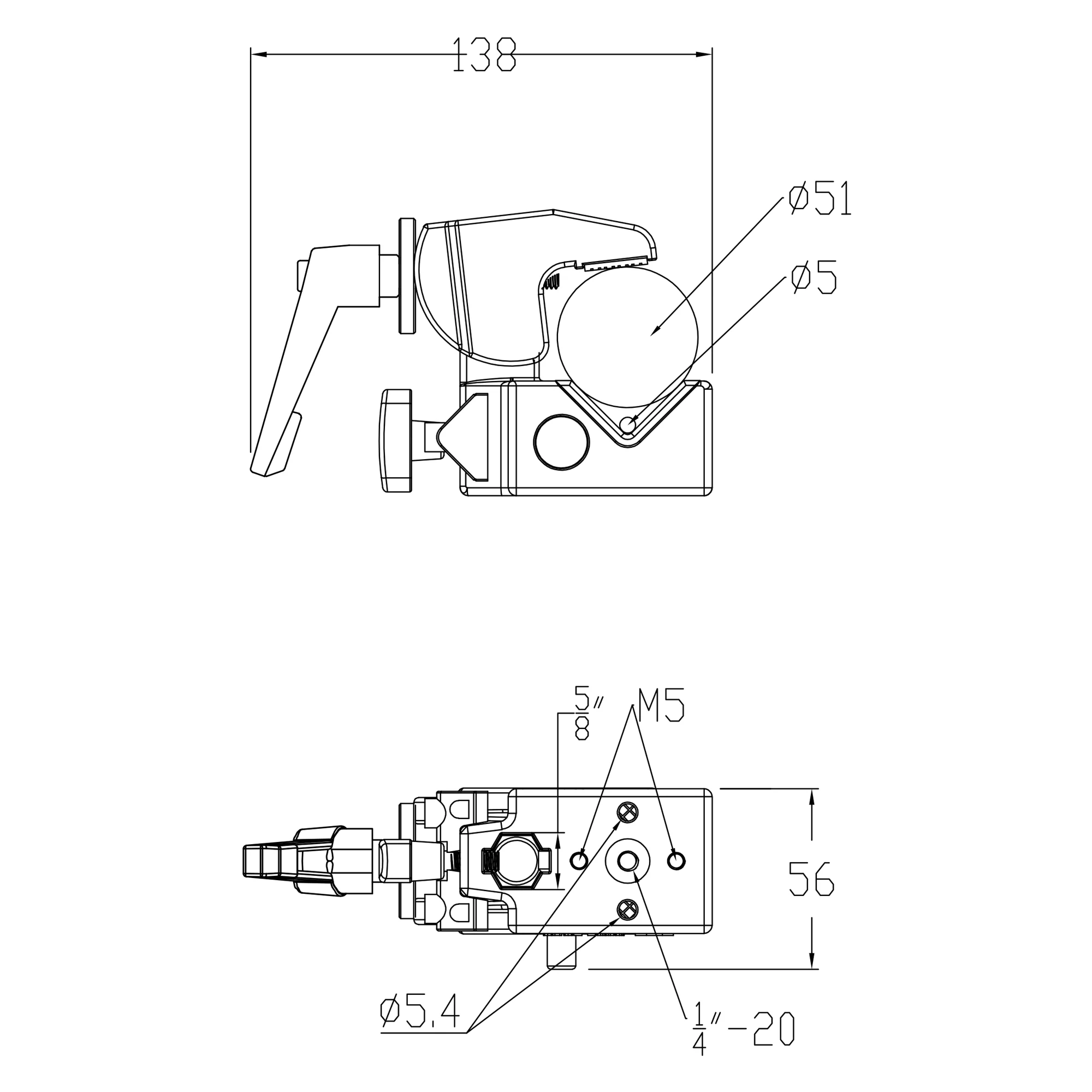

Dimensions:

Maximum Jaw Diameter: 2.01"
Minimum Jaw Diameter: 0.2"
Overall (LxWxH): 3.54 x 1.77 x 5.43"

Weight:

1.1 lbs

Materials:

Black Lightweight Aluminum Alloy, Stainless Steel Bolts

Manufacturer SKU:

KG701511

In The Box:

Kupo Convi Clamp with Adjustable Handle - Black
Kupo Camera Hex Stud 1/4"-20 Male KG002612
Limited 2-Year Manufacturer Warranty
